前言

说到微服务就得扯到自动化运维，然后别人就不得不问你用没用上K8S。无论是概念上还是在实施搭建时，K8S的门槛比Docker Compose、Docker Swarm高了不少。我自己也经过了多次的实践，整理出一套顺利部署的流程。

我这次搭建花了一共整整4个工作实践与一个工作日写博客，中间有一个网络问题导致reset了集群重新搭了一次，完成后结合了Jenkins使用，还是成就感满满的。如果对大家有用，还请点个推荐于关注。

基本概念

Kubectl

kubectl用于运行Kubernetes集群命令的管理工具，Kubernetes kubectl 与 Docker 命令关系可以查看这里

http://docs.kubernetes.org.cn/70.html

Kubeadm

kubeadm 是 kubernetes 的集群安装工具，能够快速安装 kubernetes 集群，相关命令有以下:

kubeadm init

kubeadm join

Kubelet

kubelet是主要的节点代理，它会监视已分配给节点的pod，具体功能：

安装Pod所需的volume。
下载Pod的Secrets。
Pod中运行的 docker（或experimentally，rkt）容器。
定期执行容器健康检查。

Pod

Pod是Kubernetes创建或部署的最小(最简单)的基本单位，一个Pod代表集群上正在运行的一个进程，它可能由单个容器或多个容器共享组成的资源。

一个Pod封装一个应用容器（也可以有多个容器），存储资源、一个独立的网络IP以及管理控制容器运行方式的策略选项。

Pods提供两种共享资源：网络和存储。

网络

每个Pod被分配一个独立的IP地址，Pod中的每个容器共享网络命名空间，包括IP地址和网络端口。Pod内的容器可以使用localhost相互通信。当Pod中的容器与Pod 外部通信时，他们必须协调如何使用共享网络资源（如端口）。

存储

Pod可以指定一组共享存储volumes。Pod中的所有容器都可以访问共享volumes，允许这些容器共享数据。volumes 还用于Pod中的数据持久化，以防其中一个容器需要重新启动而丢失数据。

Service

一个应用服务在Kubernetes中可能会有一个或多个Pod，每个Pod的IP地址由网络组件动态随机分配（Pod重启后IP地址会改变）。为屏蔽这些后端实例的动态变化和对多实例的负载均衡，引入了Service这个资源对象。

Kubernetes ServiceTypes 允许指定一个需要的类型的 Service，默认是 ClusterIP 类型。

Type 的取值以及行为如下：

ClusterIP：通过集群的内部 IP 暴露服务，选择该值，服务只能够在集群内部可以访问，这也是默认的 ServiceType。
NodePort：通过每个 Node 上的 IP 和静态端口（NodePort）暴露服务。NodePort 服务会路由到 ClusterIP 服务，这个 ClusterIP 服务会自动创建。通过请求 <NodeIP>:<NodePort>，可以从集群的外部访问一个 NodePort 服务。
LoadBalancer：使用云提供商的负载局衡器，可以向外部暴露服务。外部的负载均衡器可以路由到 NodePort 服务和 ClusterIP 服务。
ExternalName：通过返回 CNAME 和它的值，可以将服务映射到 externalName 字段的内容（例如， foo.bar.example.com）。没有任何类型代理被创建，这只有 Kubernetes 1.7 或更高版本的 kube-dns 才支持。

其他详细的概念请移步到 http://docs.kubernetes.org.cn/227.html

物理部署图

Docker-ce 1.19安装

在所有需要用到kubernetes服务器上安装docker-ce

卸载旧版本 docker

yum remove docker docker-common docker-selinux dockesr-engine -y

升级系统软件

yum upgrade -y

安装必要的一些系统工具

sudo yum install -y yum-utils device-mapper-persistent-data lvm2

添加docker-ce软件源

yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

更新并安装 docker-ce

yum makecache fast
yum install docker-ce-19.03.12 -y

添加docker国内镜像源

vim /etc/docker/daemon.json

{
"exec-opts": ["native.cgroupdriver=systemd"],
"registry-mirrors" : [
    "http://ovfftd6p.mirror.aliyuncs.com",
    "http://registry.docker-cn.com",
    "http://docker.mirrors.ustc.edu.cn",
    "http://hub-mirror.c.163.com"
  ],
  "insecure-registries" : [
    "registry.docker-cn.com",
    "docker.mirrors.ustc.edu.cn"
  ],
  "debug" : true,
  "experimental" : true
}

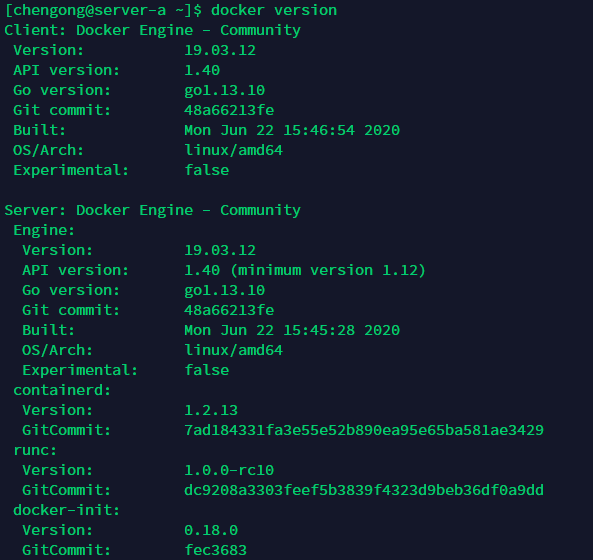

启动服务

systemctl start docker
systemctl enable docker

安装kubernetes-1.18.3

所有需要用到kubernetes的服务器都执行以下指令。

添加阿里kubernetes源

cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

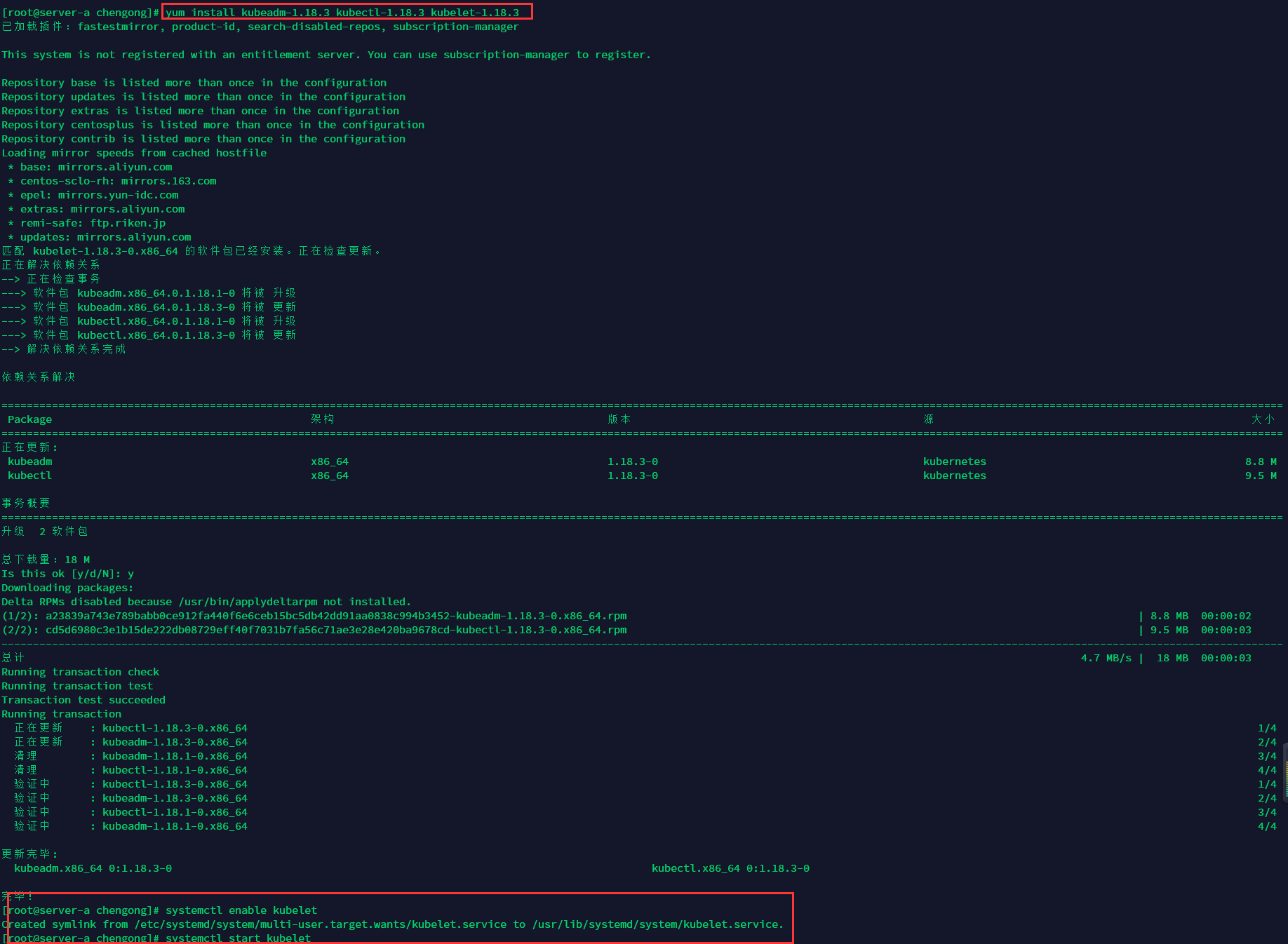

安装并启动

yum install kubeadm-1.18.3 kubectl-1.18.3 kubelet-1.18.3

启动kubelet

systemctl enable kubelet
systemctl start kubelet

在Master设置环境变量，在/etc/profile中配置

vim /etc/profile

在最后添加如下配置

export KUBECONFIG=/etc/kubernetes/admin.conf

执行命令使其起效

source /etc/profile

初始化k8s集群

在master节点（server-a）进行初始化集群

开放端口

firewall-cmd --permanent --zone=public --add-port=6443/tcp
firewall-cmd --permanent --zone=public --add-port=10250/tcp
firewall-cmd --reload

关闭swap

vim /etc/fstab
#注释swap那行

swapoff -a

设置iptables规则

echo 1 > /proc/sys/net/bridge/bridge-nf-call-iptables
echo 1 > /proc/sys/net/bridge/bridge-nf-call-ip6tables

初始化

kubeadm init --kubernetes-version=1.18.3  --apiserver-advertise-address=192.168.88.138   --image-repository registry.aliyuncs.com/google_containers  --service-cidr=10.10.0.0/16 --pod-network-cidr=10.122.0.0/16 --ignore-preflight-errors=Swap

pod-network-cidr参数的为pod网段:，apiserver-advertise-address参数为本机IP。

　　如果中途执行有异常可以通过 kubeadm reset 后重新init。

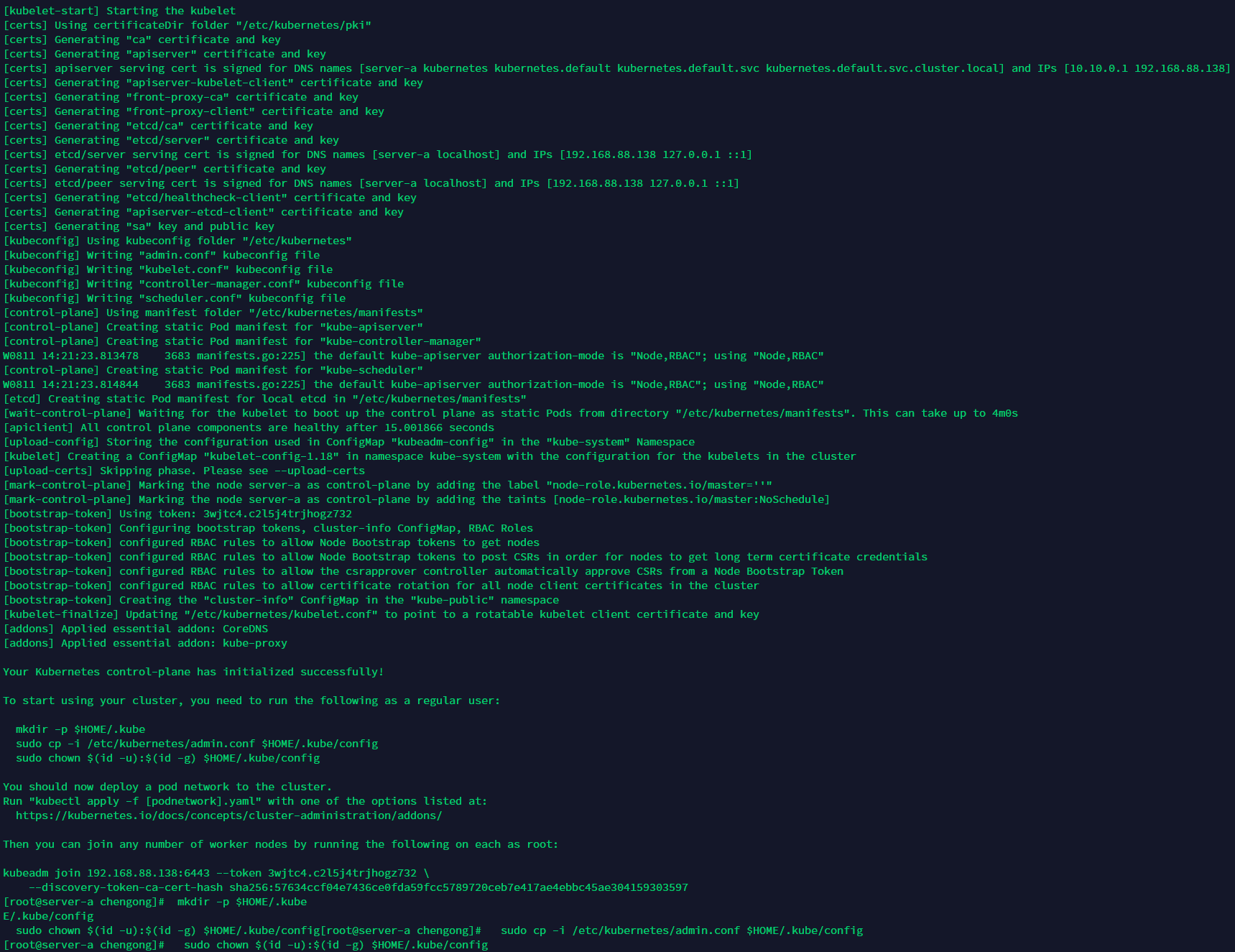

初始化成功执行下面指令

 mkdir -p $HOME/.kube
 sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
 sudo chown $(id -u):$(id -g) $HOME/.kube/config

查看node和pod信息

kubectl get node
kubectl get pod --all-namespaces

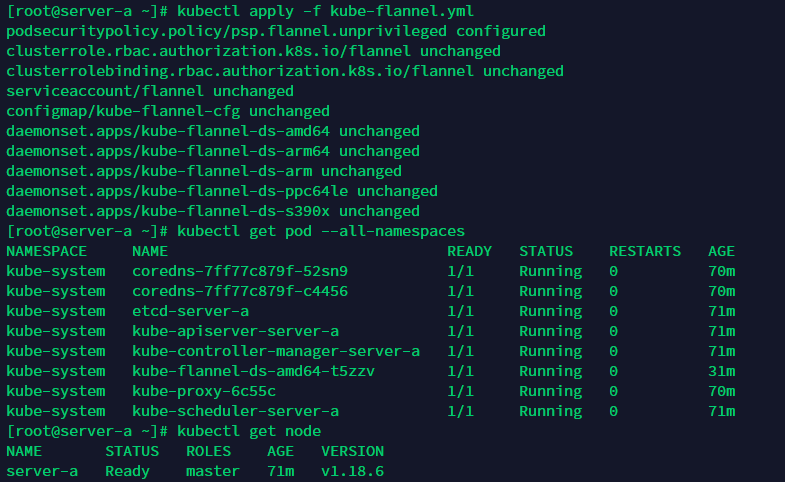

安装flannel组件

在master节点（server-a）安装flannel组件

找个梯子下载kube-flannel.yml文件

https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml

下载不了也没关系，我复制给到大家：

---
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
  name: psp.flannel.unprivileged
  annotations:
    seccomp.security.alpha.kubernetes.io/allowedProfileNames: docker/default
    seccomp.security.alpha.kubernetes.io/defaultProfileName: docker/default
    apparmor.security.beta.kubernetes.io/allowedProfileNames: runtime/default
    apparmor.security.beta.kubernetes.io/defaultProfileName: runtime/default
spec:
  privileged: false
  volumes:
    - configMap
    - secret
    - emptyDir
    - hostPath
  allowedHostPaths:
    - pathPrefix: "/etc/cni/net.d"
    - pathPrefix: "/etc/kube-flannel"
    - pathPrefix: "/run/flannel"
  readOnlyRootFilesystem: false
  # Users and groups
  runAsUser:
    rule: RunAsAny
  supplementalGroups:
    rule: RunAsAny
  fsGroup:
    rule: RunAsAny
  # Privilege Escalation
  allowPrivilegeEscalation: false
  defaultAllowPrivilegeEscalation: false
  # Capabilities
  allowedCapabilities: ['NET_ADMIN', 'NET_RAW']
  defaultAddCapabilities: []
  requiredDropCapabilities: []
  # Host namespaces
  hostPID: false
  hostIPC: false
  hostNetwork: true
  hostPorts:
  - min: 0
    max: 65535
  # SELinux
  seLinux:
    # SELinux is unused in CaaSP
    rule: 'RunAsAny'
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
  name: flannel
rules:
  - apiGroups: ['extensions']
    resources: ['podsecuritypolicies']
    verbs: ['use']
    resourceNames: ['psp.flannel.unprivileged']
  - apiGroups:
      - ""
    resources:
      - pods
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - nodes
    verbs:
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - nodes/status
    verbs:
      - patch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
  name: flannel
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: flannel
subjects:
- kind: ServiceAccount
  name: flannel
  namespace: kube-system
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: flannel
  namespace: kube-system
---
kind: ConfigMap
apiVersion: v1
metadata:
  name: kube-flannel-cfg
  namespace: kube-system
  labels:
    tier: node
    app: flannel
data:
  cni-conf.json: |
    {
      "name": "cbr0",
      "cniVersion": "0.3.1",
      "plugins": [
        {
          "type": "flannel",
          "delegate": {
            "hairpinMode": true,
            "isDefaultGateway": true
          }
        },
        {
          "type": "portmap",
          "capabilities": {
            "portMappings": true
          }
        }
      ]
    }
  net-conf.json: |
    {
      "Network": "10.244.0.0/16",
      "Backend": {
        "Type": "vxlan"
      }
    }
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: kube-flannel-ds-amd64
  namespace: kube-system
  labels:
    tier: node
    app: flannel
spec:
  selector:
    matchLabels:
      app: flannel
  template:
    metadata:
      labels:
        tier: node
        app: flannel
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
              - matchExpressions:
                  - key: kubernetes.io/os
                    operator: In
                    values:
                      - linux
                  - key: kubernetes.io/arch
                    operator: In
                    values:
                      - amd64
      hostNetwork: true
      priorityClassName: system-node-critical
      tolerations:
      - operator: Exists
        effect: NoSchedule
      serviceAccountName: flannel
      initContainers:
      - name: install-cni
        image: quay.io/coreos/flannel:v0.12.0-amd64
        command:
        - cp
        args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        volumeMounts:
        - name: cni
          mountPath: /etc/cni/net.d
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      containers:
      - name: kube-flannel
        image: quay.io/coreos/flannel:v0.12.0-amd64
        command:
        - /opt/bin/flanneld
        args:
        - --ip-masq
        - --kube-subnet-mgr
        resources:
          requests:
            cpu: "100m"
            memory: "50Mi"
          limits:
            cpu: "100m"
            memory: "50Mi"
        securityContext:
          privileged: false
          capabilities:
            add: ["NET_ADMIN", "NET_RAW"]
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        volumeMounts:
        - name: run
          mountPath: /run/flannel
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      volumes:
        - name: run
          hostPath:
            path: /run/flannel
        - name: cni
          hostPath:
            path: /etc/cni/net.d
        - name: flannel-cfg
          configMap:
            name: kube-flannel-cfg
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: kube-flannel-ds-arm64
  namespace: kube-system
  labels:
    tier: node
    app: flannel
spec:
  selector:
    matchLabels:
      app: flannel
  template:
    metadata:
      labels:
        tier: node
        app: flannel
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
              - matchExpressions:
                  - key: kubernetes.io/os
                    operator: In
                    values:
                      - linux
                  - key: kubernetes.io/arch
                    operator: In
                    values:
                      - arm64
      hostNetwork: true
      priorityClassName: system-node-critical
      tolerations:
      - operator: Exists
        effect: NoSchedule
      serviceAccountName: flannel
      initContainers:
      - name: install-cni
        image: quay.io/coreos/flannel:v0.12.0-arm64
        command:
        - cp
        args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        volumeMounts:
        - name: cni
          mountPath: /etc/cni/net.d
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      containers:
      - name: kube-flannel
        image: quay.io/coreos/flannel:v0.12.0-arm64
        command:
        - /opt/bin/flanneld
        args:
        - --ip-masq
        - --kube-subnet-mgr
        resources:
          requests:
            cpu: "100m"
            memory: "50Mi"
          limits:
            cpu: "100m"
            memory: "50Mi"
        securityContext:
          privileged: false
          capabilities:
             add: ["NET_ADMIN", "NET_RAW"]
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        volumeMounts:
        - name: run
          mountPath: /run/flannel
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      volumes:
        - name: run
          hostPath:
            path: /run/flannel
        - name: cni
          hostPath:
            path: /etc/cni/net.d
        - name: flannel-cfg
          configMap:
            name: kube-flannel-cfg
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: kube-flannel-ds-arm
  namespace: kube-system
  labels:
    tier: node
    app: flannel
spec:
  selector:
    matchLabels:
      app: flannel
  template:
    metadata:
      labels:
        tier: node
        app: flannel
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
              - matchExpressions:
                  - key: kubernetes.io/os
                    operator: In
                    values:
                      - linux
                  - key: kubernetes.io/arch
                    operator: In
                    values:
                      - arm
      hostNetwork: true
      priorityClassName: system-node-critical
      tolerations:
      - operator: Exists
        effect: NoSchedule
      serviceAccountName: flannel
      initContainers:
      - name: install-cni
        image: quay.io/coreos/flannel:v0.12.0-arm
        command:
        - cp
        args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        volumeMounts:
        - name: cni
          mountPath: /etc/cni/net.d
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      containers:
      - name: kube-flannel
        image: quay.io/coreos/flannel:v0.12.0-arm
        command:
        - /opt/bin/flanneld
        args:
        - --ip-masq
        - --kube-subnet-mgr
        resources:
          requests:
            cpu: "100m"
            memory: "50Mi"
          limits:
            cpu: "100m"
            memory: "50Mi"
        securityContext:
          privileged: false
          capabilities:
             add: ["NET_ADMIN", "NET_RAW"]
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        volumeMounts:
        - name: run
          mountPath: /run/flannel
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      volumes:
        - name: run
          hostPath:
            path: /run/flannel
        - name: cni
          hostPath:
            path: /etc/cni/net.d
        - name: flannel-cfg
          configMap:
            name: kube-flannel-cfg
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: kube-flannel-ds-ppc64le
  namespace: kube-system
  labels:
    tier: node
    app: flannel
spec:
  selector:
    matchLabels:
      app: flannel
  template:
    metadata:
      labels:
        tier: node
        app: flannel
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
              - matchExpressions:
                  - key: kubernetes.io/os
                    operator: In
                    values:
                      - linux
                  - key: kubernetes.io/arch
                    operator: In
                    values:
                      - ppc64le
      hostNetwork: true
      priorityClassName: system-node-critical
      tolerations:
      - operator: Exists
        effect: NoSchedule
      serviceAccountName: flannel
      initContainers:
      - name: install-cni
        image: quay.io/coreos/flannel:v0.12.0-ppc64le
        command:
        - cp
        args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        volumeMounts:
        - name: cni
          mountPath: /etc/cni/net.d
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      containers:
      - name: kube-flannel
        image: quay.io/coreos/flannel:v0.12.0-ppc64le
        command:
        - /opt/bin/flanneld
        args:
        - --ip-masq
        - --kube-subnet-mgr
        resources:
          requests:
            cpu: "100m"
            memory: "50Mi"
          limits:
            cpu: "100m"
            memory: "50Mi"
        securityContext:
          privileged: false
          capabilities:
             add: ["NET_ADMIN", "NET_RAW"]
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        volumeMounts:
        - name: run
          mountPath: /run/flannel
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      volumes:
        - name: run
          hostPath:
            path: /run/flannel
        - name: cni
          hostPath:
            path: /etc/cni/net.d
        - name: flannel-cfg
          configMap:
            name: kube-flannel-cfg
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: kube-flannel-ds-s390x
  namespace: kube-system
  labels:
    tier: node
    app: flannel
spec:
  selector:
    matchLabels:
      app: flannel
  template:
    metadata:
      labels:
        tier: node
        app: flannel
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
              - matchExpressions:
                  - key: kubernetes.io/os
                    operator: In
                    values:
                      - linux
                  - key: kubernetes.io/arch
                    operator: In
                    values:
                      - s390x
      hostNetwork: true
      priorityClassName: system-node-critical
      tolerations:
      - operator: Exists
        effect: NoSchedule
      serviceAccountName: flannel
      initContainers:
      - name: install-cni
        image: quay.io/coreos/flannel:v0.12.0-s390x
        command:
        - cp
        args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        volumeMounts:
        - name: cni
          mountPath: /etc/cni/net.d
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      containers:
      - name: kube-flannel
        image: quay.io/coreos/flannel:v0.12.0-s390x
        command:
        - /opt/bin/flanneld
        args:
        - --ip-masq
        - --kube-subnet-mgr
        resources:
          requests:
            cpu: "100m"
            memory: "50Mi"
          limits:
            cpu: "100m"
            memory: "50Mi"
        securityContext:
          privileged: false
          capabilities:
             add: ["NET_ADMIN", "NET_RAW"]
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        volumeMounts:
        - name: run
          mountPath: /run/flannel
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      volumes:
        - name: run
          hostPath:
            path: /run/flannel
        - name: cni
          hostPath:
            path: /etc/cni/net.d
        - name: flannel-cfg
          configMap:
            name: kube-flannel-cfg

先拉取依赖镜像

 docker pull  quay.io/coreos/flannel:v0.12.0-amd64

把上面文件保存到服务器然后执行下面命令

kubectl apply -f kube-flannel.yml

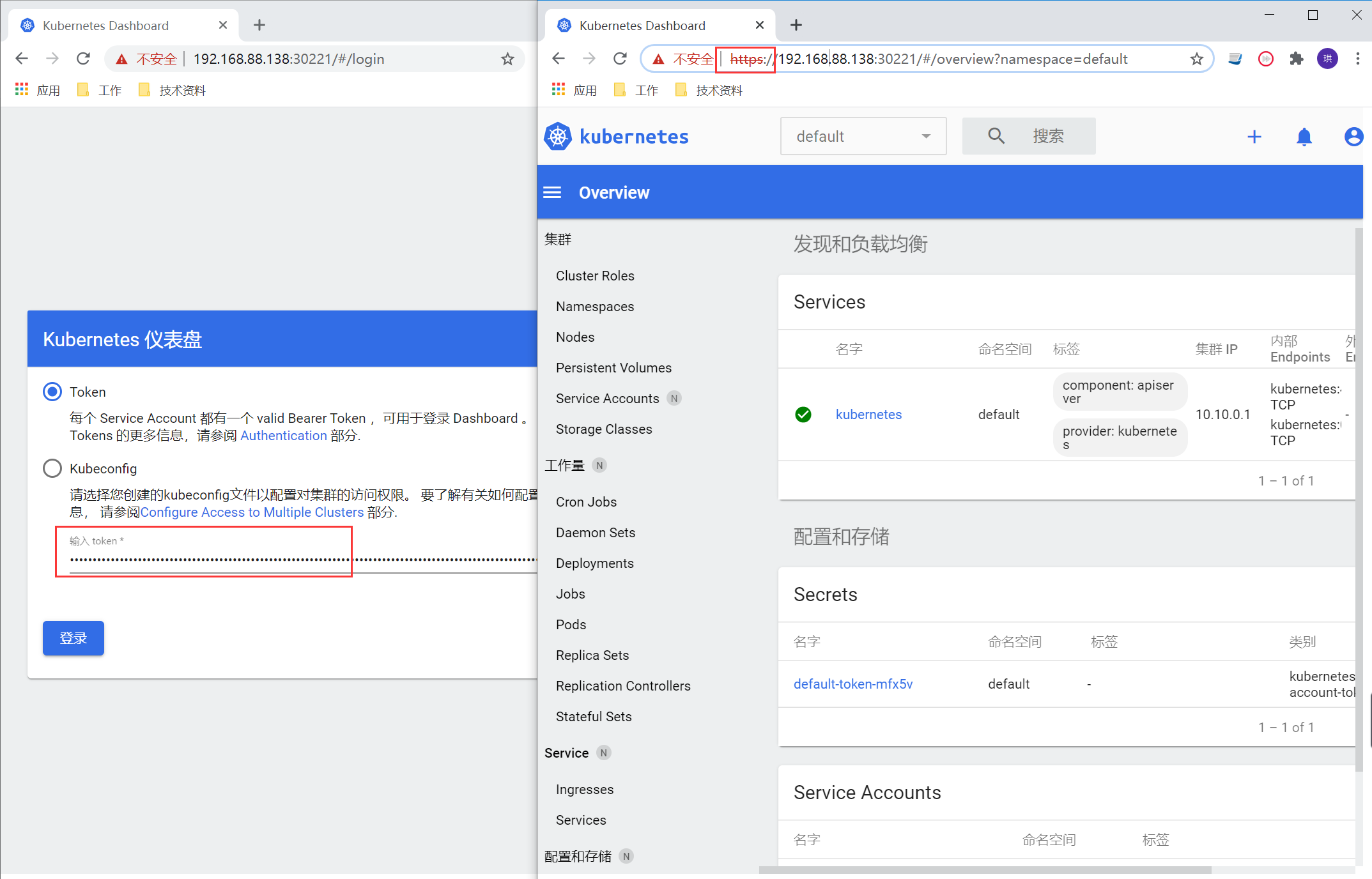

安装dashboard

在master节点（server-a）安装dashboard组件

继续用梯子下载recommended.yml文件

https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.3/aio/deploy/recommended.yaml

没梯子的可以复制下方原文件

# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: Namespace
metadata:
  name: kubernetes-dashboard

---

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 443
      targetPort: 8443
  selector:
    k8s-app: kubernetes-dashboard

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-certs
  namespace: kubernetes-dashboard
type: Opaque

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-csrf
  namespace: kubernetes-dashboard
type: Opaque
data:
  csrf: ""

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-key-holder
  namespace: kubernetes-dashboard
type: Opaque

---

kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-settings
  namespace: kubernetes-dashboard

---

kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
rules:
  # Allow Dashboard to get, update and delete Dashboard exclusive secrets.
  - apiGroups: [""]
    resources: ["secrets"]
    resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
    verbs: ["get", "update", "delete"]
    # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
  - apiGroups: [""]
    resources: ["configmaps"]
    resourceNames: ["kubernetes-dashboard-settings"]
    verbs: ["get", "update"]
    # Allow Dashboard to get metrics.
  - apiGroups: [""]
    resources: ["services"]
    resourceNames: ["heapster", "dashboard-metrics-scraper"]
    verbs: ["proxy"]
  - apiGroups: [""]
    resources: ["services/proxy"]
    resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
    verbs: ["get"]

---

kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
rules:
  # Allow Metrics Scraper to get metrics from the Metrics server
  - apiGroups: ["metrics.k8s.io"]
    resources: ["pods", "nodes"]
    verbs: ["get", "list", "watch"]

---

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
    spec:
      containers:
        - name: kubernetes-dashboard
          image: kubernetesui/dashboard:v2.0.3
          imagePullPolicy: Always
          ports:
            - containerPort: 8443
              protocol: TCP
          args:
            - --auto-generate-certificates
            - --namespace=kubernetes-dashboard
            # Uncomment the following line to manually specify Kubernetes API server Host
            # If not specified, Dashboard will attempt to auto discover the API server and connect
            # to it. Uncomment only if the default does not work.
            # - --apiserver-host=http://my-address:port
          volumeMounts:
            - name: kubernetes-dashboard-certs
              mountPath: /certs
              # Create on-disk volume to store exec logs
            - mountPath: /tmp
              name: tmp-volume
          livenessProbe:
            httpGet:
              scheme: HTTPS
              path: /
              port: 8443
            initialDelaySeconds: 30
            timeoutSeconds: 30
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      volumes:
        - name: kubernetes-dashboard-certs
          secret:
            secretName: kubernetes-dashboard-certs
        - name: tmp-volume
          emptyDir: {}
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 8000
      targetPort: 8000
  selector:
    k8s-app: dashboard-metrics-scraper

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: dashboard-metrics-scraper
  template:
    metadata:
      labels:
        k8s-app: dashboard-metrics-scraper
      annotations:
        seccomp.security.alpha.kubernetes.io/pod: 'runtime/default'
    spec:
      containers:
        - name: dashboard-metrics-scraper
          image: kubernetesui/metrics-scraper:v1.0.4
          ports:
            - containerPort: 8000
              protocol: TCP
          livenessProbe:
            httpGet:
              scheme: HTTP
              path: /
              port: 8000
            initialDelaySeconds: 30
            timeoutSeconds: 30
          volumeMounts:
          - mountPath: /tmp
            name: tmp-volume
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
      volumes:
        - name: tmp-volume
          emptyDir: {}

第39行修改，端口范围30000-32767

spec:
  type: NodePort
  ports:
    - port: 443
      targetPort: 8443
      nodePort: 30221
  selector:
    k8s-app: kubernetes-dashboard

第137行开始，修改账户权限，主要三个参数，kind: ClusterRoleBinding，roleRef-kind: ClusterRole，roleRef-name: cluster-admin

---

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

保存到服务器后执行以下命令

kubectl apply -f recommended.yaml

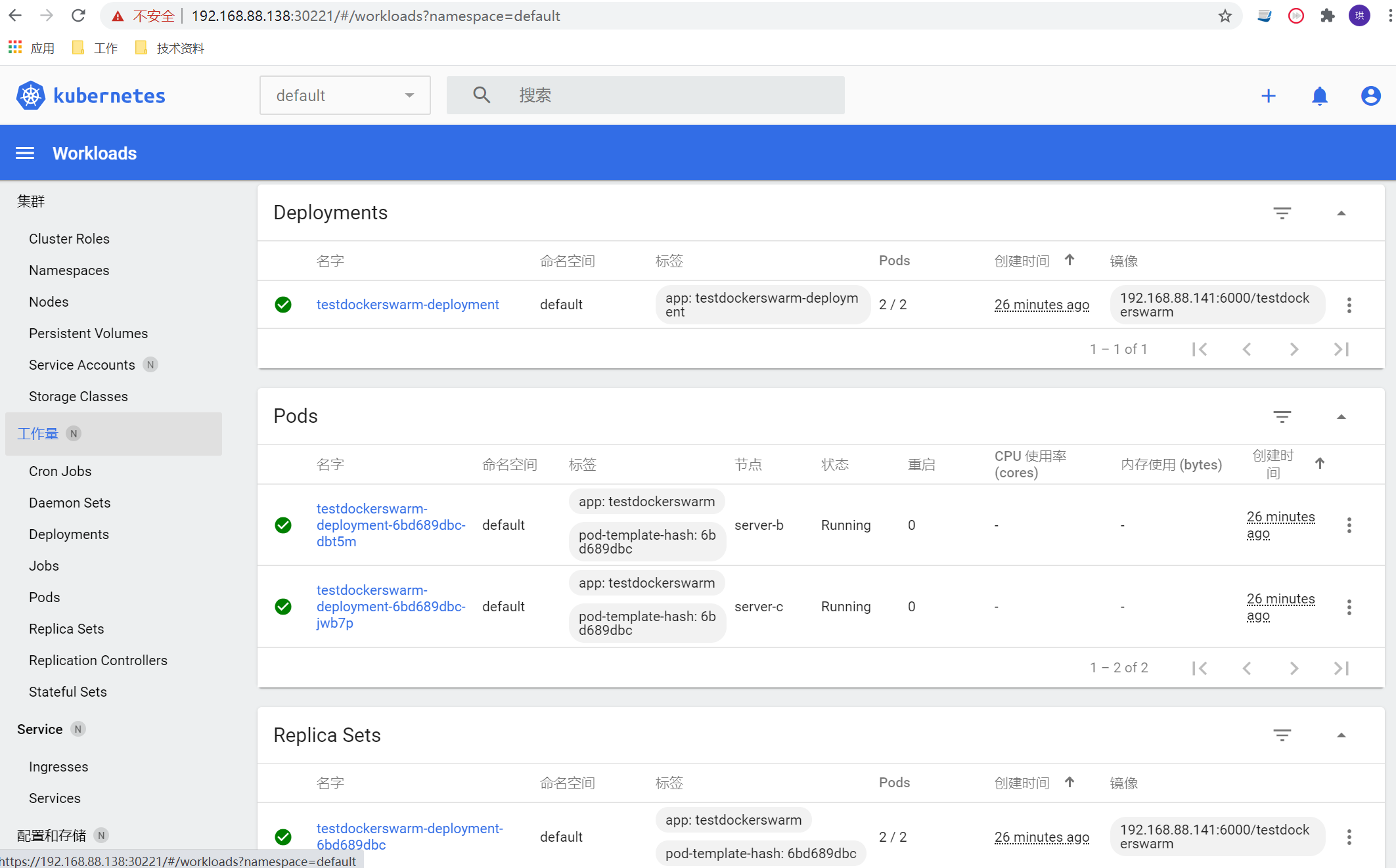

等待一段时间启动成功后，https://ip+nodePort，查看UI

Token通过下面指令获取

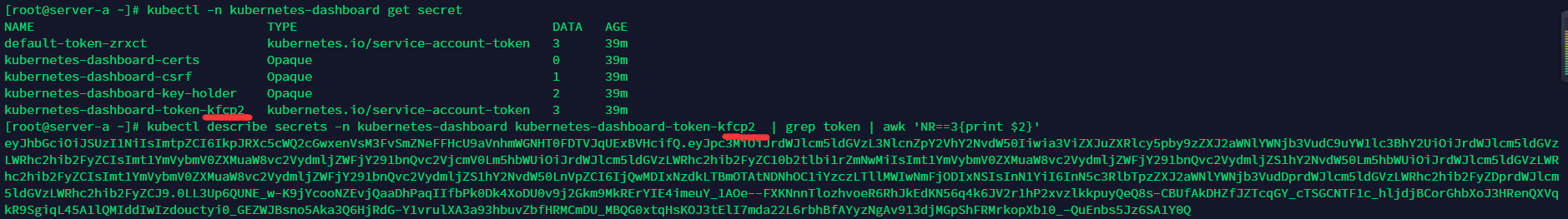

kubectl -n kubernetes-dashboard get secret

kubectl describe secrets -n kubernetes-dashboard kubernetes-dashboard-token-kfcp2  | grep token | awk 'NR==3{print $2}'

加入Worker节点

在server-b与server-c执行下面操作

把上面init后的那句join拷贝过来，如果忘记了可以在master节点执行下面指令：

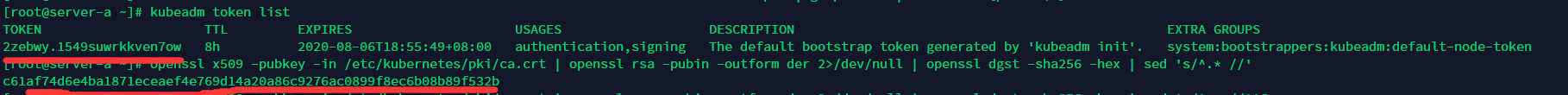

kubeadm token list

openssl x509 -pubkey -in /etc/kubernetes/pki/ca.crt | openssl rsa -pubin -outform der 2>/dev/null | openssl dgst -sha256 -hex | sed 's/^.* //'

通过返回的数据拼装成下面指令

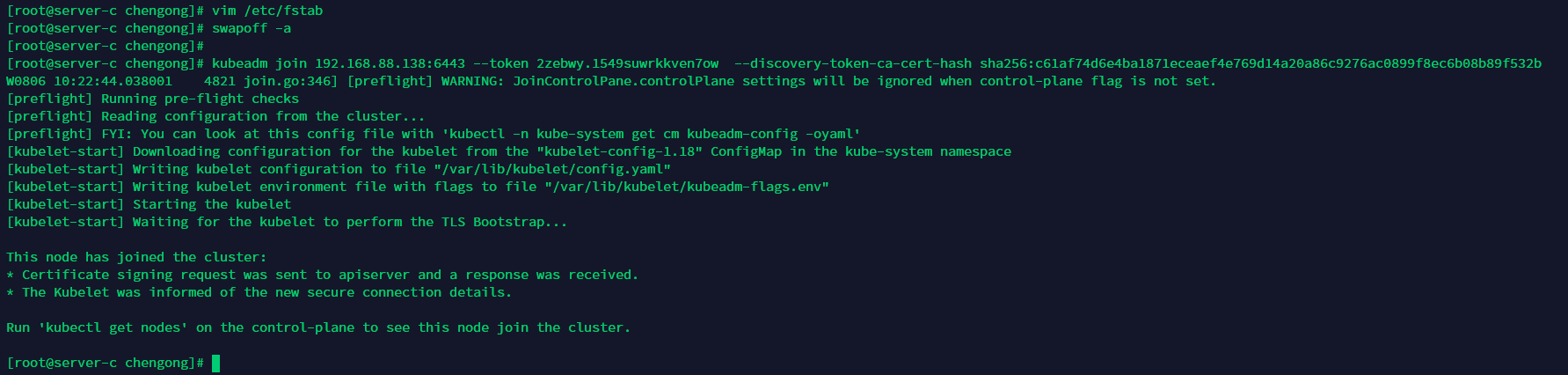

kubeadm join 192.168.88.138:6443 --token 2zebwy.1549suwrkkven7ow  --discovery-token-ca-cert-hash sha256:c61af74d6e4ba1871eceaef4e769d14a20a86c9276ac0899f8ec6b08b89f532b

查看节点信息

kubectl get node

部署Web应用

在master节点（sever-a）执行下面操作

部署应用前建议有需要的朋友到【.Net微服务实战之CI/CD】看看如何搭建docker私有仓库，后面需要用到，搭建后私有库后执行下面指令

kubectl create secret docker-registry docker-registry-secret --docker-server=192.168.88.141:6000 --docker-username=admin --docker-password=123456789

docker-server就是docker私有仓库的地址

下面是yaml模板，注意imagePullSecrets-name与上面的命名的一致，其余的可以查看yaml里的注释

apiVersion: apps/v1
kind: Deployment # Deployment为多个Pod副本
metadata:
  name: testdockerswarm-deployment
  labels:
    app: testdockerswarm-deployment
spec:
  replicas: 2 # 实例数量
  selector:
    matchLabels: # 定义该部署匹配哪些Pod
      app: testdockerswarm
  minReadySeconds: 3 # 可选，指定Pod可以变成可用状态的最小秒数，默认是0
  strategy:
    type: RollingUpdate # 部署策略类型，使用RollingUpdate可以保证部署期间服务不间断
    rollingUpdate:
      maxUnavailable: 1 # 部署时最大允许停止的Pod数量
      maxSurge: 1 # 部署时最大允许创建的Pod数量
  template: # 用来指定Pod的模板，与Pod的定义类似
    metadata:
      labels: # Pod标签，与上面matchLabels对应
        app: testdockerswarm
    spec:
      imagePullSecrets:
        - name: docker-registry-secret
      containers:
        - name: testdockerswarm
          image: 192.168.88.141:6000/testdockerswarm
          imagePullPolicy: Always # Always每次拉去新镜像
          ports:
            - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: testdockerswarm-service
  labels:
    name: testdockerswarm-service
spec:
  selector:
    app: testdockerswarm #与template-labels参数pod标签一致
  ports:
    - protocol: TCP
      port: 80 #clusterIP开放的端口
      targetPort: 80 #container开放的端口，与containerPort一致
      nodePort: 31221 # 所有的节点都会开放此端口，此端口供外部调用。
  type: NodePort

把yaml文件保存到服务器后执行下面命令

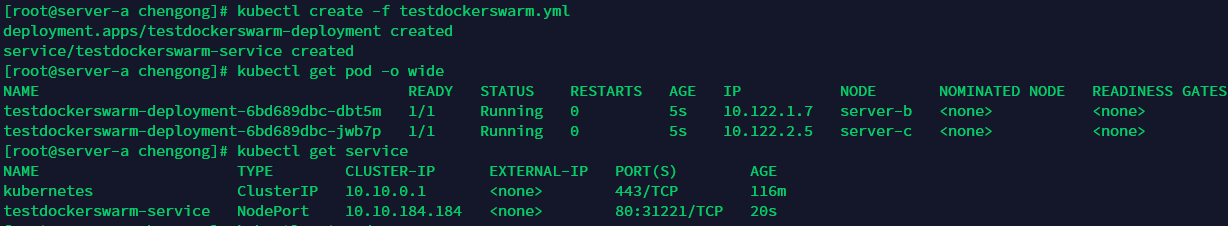

kubectl create -f testdockerswarm.yml

整个搭建部署的过程基本上到这里结束了。

访问

可以通过指令kubectl get service得到ClusterIP，分别在server-c和sever-b执行curl 10.10.184.184

也可以通过执行kubectl get pods -o wide得到pod ip，在server-c执行curl 10.122.2.5 和 server-b执行curl 10.122.1.7

也可以在外部访问 server-c和server-b的 ip + 31221

如果节点有异常可以通过下面指令排查

journalctl -f -u kubelet.service | grep -i error -C 500

如果Pod无法正常running可以通过下面指令查看

kubectl describe pod testdockerswarm-deployment-7bc647d87d-qwvzm

.Net微服务实战之Kubernetes的搭建与使用 - 陈珙 - 博客园
