构建属于自己的ORM框架之二--IQueryable的奥秘 - Poiuyt_cyc - 博客园

2020-07-05 分类：C# / 架构设计 阅读(515) 评论(0)

来源： 构建属于自己的ORM框架之二–IQueryable的奥秘 – Poiuyt_cyc – 博客园

上篇文章标题乱起，被吐槽了，这次学乖了。

上篇文章中介绍了如何解析Expression生成对应的SQL语句，以及IQueryable的一些概念，以及我们所搭建的框架的思想等。但还没把它们结合并应用起来。这一篇文章将更黄更暴力，揭露IQueryable在实际使用中延迟加载的实现原理，结合上篇对Expression的解析，我们来实现一个自己的“延迟加载”

如果还不太了解如何解析Expression和IQueryable的一些基本概念，可以先看看我的上篇文章



我们先来做些基本工作，定义一个IDataBase接口，里面可以定义些查询，删除，修改，新增等方法，为了节约时间，我们就定义一个查询和删除的方法，再定义一个获取IQueryable<T>实例的方法

 　　public interface IDataBase
    {
        List<T> FindAs<T>(Expression<Func<T, bool>> lambdawhere);
        int Remove<T>(Expression<Func<T, bool>> lambdawhere);
        IQueryable<T> Source<T>();
    }

再添加一个类DBSQL，实现我们上面的IDataBase接口，这个类是负责提供对sql数据库的操作

复制代码
 public class DBSql : IDataBase
    {
        public List<T> FindAs<T>(Expression<Func<T, bool>> lambdawhere)
        {
            throw new NotImplementedException();
        }

        public int Remove<T>(Expression<Func<T, bool>> lambdawhere)
        {
            throw new NotImplementedException();
        }

        public IQueryable<T> Source<T>()
        {
            throw new NotImplementedException();
        }
    }
复制代码



IQueryable<T>

上篇文章中有个朋友的回复对IQueryable的解释十分到位，“IQueryable只存贮条件，不立即运行，从而可以实现延迟加载。”那它是如何存贮条件，如何延迟加载的？

这时我们为了提供 public IQueryable<T> Source<T>() 所需的对象。我们再来建一个SqlQuery类，实现IQueryable<T>。

复制代码
 　　public class SqlQuery<T> : IQueryable<T>
    {
        public IEnumerator<T> GetEnumerator()
        {
            throw new NotImplementedException();
        }

        System.Collections.IEnumerator System.Collections.IEnumerable.GetEnumerator()
        {
            throw new NotImplementedException();
        }

        public Type ElementType
        {
            get { throw new NotImplementedException(); }
        }

        public Expression Expression
        {
            get { throw new NotImplementedException(); }
        }

        public IQueryProvider Provider
        {
            get { throw new NotImplementedException(); }
        }
    }
复制代码



看到这里大家都不陌生吧？

GetEnumerator()是IEnumerable<T>里的。有了它我们就能foreach了。有泛型和非泛型版本，所以有2个

Type提供访问当前对象的类型（反正由你定义。。。）

Expression是贮存查询条件的

IQueryProvider简单的翻译过来就是查询提供者，它是负责创建查询条件和执行查询的。我们写一个SqlProvider类来实现它



复制代码
  public class SqlProvider<T> : IQueryProvider
    {

        public IQueryable<TElement> CreateQuery<TElement>(Expression expression)
        {
            throw new NotImplementedException();
        }

        public IQueryable CreateQuery(Expression expression)
        {
            throw new NotImplementedException();
        }

        public TResult Execute<TResult>(Expression expression)
        {
            throw new NotImplementedException();
        }

        public object Execute(Expression expression)
        {
            throw new NotImplementedException();
        }
    }
复制代码

CreateQuery是创建查询条件。。

平时我们

IQueryable query=xxx源;

query=query.Where(x=>x.Name==”123″);

这时Where方法里做的其实就是将前面query的Expression属性和Where里的(x=>x.Name==”123″)相并，并且调用Provider属性里的CreateQuery方法。我们可以把我们的代码改成这样，来看看到底是不是这么回事。

复制代码
   public class DBSql : IDataBase
    {
        public IQueryable<T> Source<T>()
        {
            return new SqlQuery<T>();
        }

        public List<T> FindAs<T>(Expression<Func<T, bool>> lambdawhere)
        {
            throw new NotImplementedException();
        }

        public int Remove<T>(Expression<Func<T, bool>> lambdawhere)
        {
            throw new NotImplementedException();
        }
    }

    public class SqlQuery<T> : IQueryable<T>
    {

        private Expression _expression;
        private IQueryProvider _provider;

        public SqlQuery()
        {
            _provider = new SqlProvider<T>();
            _expression = Expression.Constant(this);
        }

        public SqlQuery(Expression expression, IQueryProvider provider)
        {
            _expression = expression;
            _provider = provider;
        }

        public IEnumerator<T> GetEnumerator()
        {
            throw new NotImplementedException();
        }

        System.Collections.IEnumerator System.Collections.IEnumerable.GetEnumerator()
        {
            throw new NotImplementedException();
        }

        public Type ElementType
        {
            get { return typeof(SqlQuery<T>); }
        }

        public Expression Expression
        {
            get { return _expression; }
        }

        public IQueryProvider Provider
        {
            get { return _provider; }
        }
    }

    public class SqlProvider<T> : IQueryProvider
    {
        public IQueryable<TElement> CreateQuery<TElement>(Expression expression)
        {
            IQueryable<TElement> query = new SqlQuery<TElement>(expression, this);
            return query;
        }

        public IQueryable CreateQuery(Expression expression)
        {
            throw new NotImplementedException();
        }

        public TResult Execute<TResult>(Expression expression)
        {
            throw new NotImplementedException();
        }

        public object Execute(Expression expression)
        {
            throw new NotImplementedException();
        }
    }
复制代码
复制代码
　　　　 public class Staff
        {
            public int ID { get; set; }
            public string Code { get; set; }
            public string Name { get; set; }
            public DateTime? Birthday { get; set; }
            public bool Deletion { get; set; }
        }

        static void Main(string[] args)
        {
            IDataBase db = new DBSql();
            IQueryable<Staff> query = db.Source<Staff>();
            string name = "张三";
            Expression express = null;
            query = query.Where(x => x.Name == "赵建华");
            express = query.Expression;
            query = query.Where(x => x.Name == name);
            express = query.Expression;
        }
复制代码

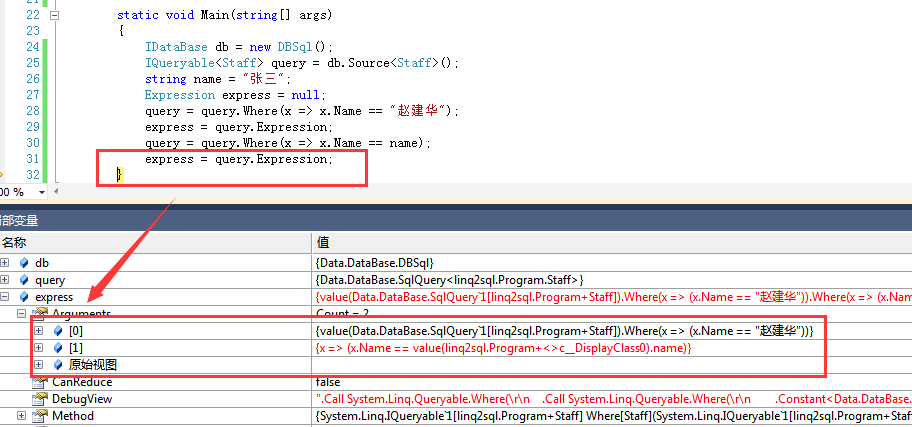

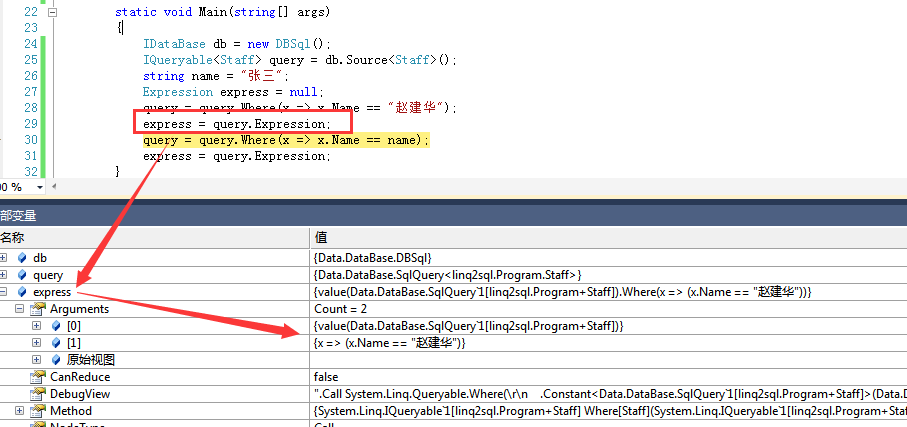

段点打在

public IQueryable<TElement> CreateQuery<TElement>(Expression expression)

每次query.Where都会跑这里来。并且Expression都是前后相并的结果。





到了这一步，相信大家都明白了IQueryable只存贮条件这个概念了吧。

那延迟加载呢？什么时候加载啊！当我们foreach或者ToList/ToArray时啊。这时你想到了什么？GetEnumerator()。在调用GetEnumerator()时。我们再调用Provider里的Execute(Expression)。里面解析Expression，生成SQL语句，通过反射的方式生成实例，再一个个返回回去。完成！下面我直接给代码了。解析Expression的类我也改了，这个更黄更暴力。

复制代码
  public class ResolveExpression
    {
        public Dictionary<string, object> Argument;
        public string SqlWhere;
        public SqlParameter[] Paras;
        private int index = 0;
        /// <summary>
        /// 解析lamdba，生成Sql查询条件
        /// </summary>
        /// <param name="expression"></param>
        /// <returns></returns>
        public void ResolveToSql(Expression expression)
        {
            this.index = 0;
            this.Argument = new Dictionary<string, object>();
            this.SqlWhere = Resolve(expression);
            this.Paras = Argument.Select(x => new SqlParameter(x.Key, x.Value)).ToArray();
        }

        private object GetValue(Expression expression)
        {
            if (expression is ConstantExpression)
                return (expression as ConstantExpression).Value;
            if (expression is UnaryExpression)
            {
                UnaryExpression unary = expression as UnaryExpression;
                LambdaExpression lambda = Expression.Lambda(unary.Operand);
                Delegate fn = lambda.Compile();
                return fn.DynamicInvoke(null);
            }
            if (expression is MemberExpression)
            {
                MemberExpression member = expression as MemberExpression;
                string name = member.Member.Name;
                var constant = member.Expression as ConstantExpression;
                if (constant == null)
                    throw new Exception("取值时发生异常" + member);
                return constant.Value.GetType().GetFields().First(x => x.Name == name).GetValue(constant.Value);
            }
            throw new Exception("无法获取值" + expression);
        }

        private string Resolve(Expression expression)
        {
            if (expression is LambdaExpression)
            {
                LambdaExpression lambda = expression as LambdaExpression;
                expression = lambda.Body;
                return Resolve(expression);
            }
            if (expression is BinaryExpression)//解析二元运算符
            {
                BinaryExpression binary = expression as BinaryExpression;
                if (binary.Left is MemberExpression)
                {
                    object value = GetValue(binary.Right);
                    return ResolveFunc(binary.Left, value, binary.NodeType);
                }
                if (binary.Left is MethodCallExpression && (binary.Right is UnaryExpression || binary.Right is MemberExpression))
                {
                    object value = GetValue(binary.Right);
                    return ResolveLinqToObject(binary.Left, value, binary.NodeType);
                }
            }
            if (expression is UnaryExpression)//解析一元运算符
            {
                UnaryExpression unary = expression as UnaryExpression;
                if (unary.Operand is MethodCallExpression)
                {
                    return ResolveLinqToObject(unary.Operand, false);
                }
                if (unary.Operand is MemberExpression)
                {
                    return ResolveFunc(unary.Operand, false, ExpressionType.Equal);
                }
            }
            if (expression is MethodCallExpression)//解析扩展方法
            {
                return ResolveLinqToObject(expression, true);
            }
            if (expression is MemberExpression)//解析属性。。如x.Deletion
            {
                return ResolveFunc(expression, true, ExpressionType.Equal);
            }
            var body = expression as BinaryExpression;
            if (body == null)
                throw new Exception("无法解析" + expression);
            var Operator = GetOperator(body.NodeType);
            var Left = Resolve(body.Left);
            var Right = Resolve(body.Right);
            string Result = string.Format("({0} {1} {2})", Left, Operator, Right);
            return Result;
        }

        /// <summary>
        /// 根据条件生成对应的sql查询操作符
        /// </summary>
        /// <param name="expressiontype"></param>
        /// <returns></returns>
        private string GetOperator(ExpressionType expressiontype)
        {
            switch (expressiontype)
            {
                case ExpressionType.And:
                    return "and";
                case ExpressionType.AndAlso:
                    return "and";
                case ExpressionType.Or:
                    return "or";
                case ExpressionType.OrElse:
                    return "or";
                case ExpressionType.Equal:
                    return "=";
                case ExpressionType.NotEqual:
                    return "<>";
                case ExpressionType.LessThan:
                    return "<";
                case ExpressionType.LessThanOrEqual:
                    return "<=";
                case ExpressionType.GreaterThan:
                    return ">";
                case ExpressionType.GreaterThanOrEqual:
                    return ">=";
                default:
                    throw new Exception(string.Format("不支持{0}此种运算符查找！" + expressiontype));
            }
        }


        private string ResolveFunc(Expression left, object value, ExpressionType expressiontype)
        {
            string Name = (left as MemberExpression).Member.Name;
            string Operator = GetOperator(expressiontype);
            string Value = value.ToString();
            string CompName = SetArgument(Name, Value);
            string Result = string.Format("({0} {1} {2})", Name, Operator, CompName);
            return Result;
        }

        private string ResolveLinqToObject(Expression expression, object value, ExpressionType? expressiontype = null)
        {
            var MethodCall = expression as MethodCallExpression;
            var MethodName = MethodCall.Method.Name;
            switch (MethodName)//这里其实还可以改成反射调用，不用写switch
            {
                case "Contains":
                    if (MethodCall.Object != null)
                        return Like(MethodCall);
                    return In(MethodCall, value);
                case "Count":
                    return Len(MethodCall, value, expressiontype.Value);
                case "LongCount":
                    return Len(MethodCall, value, expressiontype.Value);
                default:
                    throw new Exception(string.Format("不支持{0}方法的查找！", MethodName));
            }
        }

        private string SetArgument(string name, string value)
        {
            name = "@" + name;
            string temp = name;
            while (Argument.ContainsKey(temp))
            {
                temp = name + index;
                index = index + 1;
            }
            Argument[temp] = value;
            return temp;
        }

        private string In(MethodCallExpression expression, object isTrue)
        {
            var Argument1 = expression.Arguments[0];
            var Argument2 = expression.Arguments[1] as MemberExpression;
            var fieldValue = GetValue(Argument1);
            object[] array = fieldValue as object[];
            List<string> SetInPara = new List<string>();
            for (int i = 0; i < array.Length; i++)
            {
                string Name_para = "InParameter" + i;
                string Value = array[i].ToString();
                string Key = SetArgument(Name_para, Value);
                SetInPara.Add(Key);
            }
            string Name = Argument2.Member.Name;
            string Operator = Convert.ToBoolean(isTrue) ? "in" : " not in";
            string CompName = string.Join(",", SetInPara);
            string Result = string.Format("{0} {1} ({2})", Name, Operator, CompName);
            return Result;
        }

        private string Like(MethodCallExpression expression)
        {
            Expression argument = expression.Arguments[0];
            object Temp_Vale = GetValue(argument);
            string Value = string.Format("%{0}%", Temp_Vale);
            string Name = (expression.Object as MemberExpression).Member.Name;
            string CompName = SetArgument(Name, Value);
            string Result = string.Format("{0} like {1}", Name, CompName);
            return Result;
        }

        private string Len(MethodCallExpression expression, object value, ExpressionType expressiontype)
        {
            object Name = (expression.Arguments[0] as MemberExpression).Member.Name;
            string Operator = GetOperator(expressiontype);
            string CompName = SetArgument(Name.ToString(), value.ToString());
            string Result = string.Format("len({0}){1}{2}", Name, Operator, CompName);
            return Result;
        }

    }
复制代码





　　public interface IDataBase
    {
        List<T> FindAs<T>(Expression<Func<T, bool>> lambdawhere);
        int Remove<T>(Expression<Func<T, bool>> lambdawhere);
        IQueryable<T> Source<T>();
    }



复制代码
namespace Data.DataBase
{
    public class DBSql : IDataBase
    {
        private readonly static string ConnectionString = @"Data Source=.;Initial Catalog=btmmcms-Standard;Persist Security Info=True;User ID=sa;Password=sa;";

        public IQueryable<T> Source<T>()
        {
            return new SqlQuery<T>();
        }

        public List<T> FindAs<T>(Expression<Func<T, bool>> lambdawhere)
        {
            using (SqlConnection Conn = new SqlConnection(ConnectionString))
            {
                using (SqlCommand Command = new SqlCommand())
                {
                    try
                    {
                        Command.Connection = Conn;
                        Conn.Open();
                        string sql = string.Format("select * from {0}", typeof(T).Name);
                        if (lambdawhere != null)
                        {
                            ResolveExpression resolve = new ResolveExpression();
                            resolve.ResolveToSql(lambdawhere);
                            sql = string.Format("{0} where {1}", sql, resolve.SqlWhere);
                            Command.Parameters.AddRange(resolve.Paras);
                        }
                        //为了测试，就在这里打印出sql语句了
                        Console.WriteLine(sql);
                        Command.CommandText = sql;
                        SqlDataReader dataReader = Command.ExecuteReader();
                        List<T> ListEntity = new List<T>();
                        while (dataReader.Read())
                        {
                            var constructor = typeof(T).GetConstructor(new Type[] { });
                            T Entity = (T)constructor.Invoke(null);
                            foreach (var item in Entity.GetType().GetProperties())
                            {
                                var value = dataReader[item.Name];
                                if (value == null)
                                    continue;
                                if (value is DBNull)
                                    value = null;
                                item.SetValue(Entity, value, null);
                            }
                            ListEntity.Add(Entity);
                        }
                        if (ListEntity.Count == 0)
                            return null;
                        return ListEntity;
                    }
                    catch (Exception ex)
                    {
                        throw ex;
                    }
                    finally
                    {
                        Conn.Close();
                    }
                }
            }
        }

        public int Remove<T>(Expression<Func<T, bool>> lambdawhere)
        {
            throw new NotImplementedException();
        }
    }

    public class SqlQuery<T> : IQueryable<T>
    {

        private Expression _expression;
        private IQueryProvider _provider;

        public SqlQuery()
        {
            _provider = new SqlProvider<T>();
            _expression = Expression.Constant(this);
        }

        public SqlQuery(Expression expression, IQueryProvider provider)
        {
            _expression = expression;
            _provider = provider;
        }

        public IEnumerator<T> GetEnumerator()
        {
            var result = _provider.Execute<List<T>>(_expression);
            if (result == null)
                yield break;
            foreach (var item in result)
            {
                yield return item;
            }
        }

        System.Collections.IEnumerator System.Collections.IEnumerable.GetEnumerator()
        {
            throw new NotImplementedException();
        }

        public Type ElementType
        {
            get { return typeof(SqlQuery<T>); }
        }

        public Expression Expression
        {
            get { return _expression; }
        }

        public IQueryProvider Provider
        {
            get { return _provider; }
        }
    }

    public class SqlProvider<T> : IQueryProvider
    {

        public IQueryable<TElement> CreateQuery<TElement>(Expression expression)
        {
            IQueryable<TElement> query = new SqlQuery<TElement>(expression, this);
            return query;
        }

        public IQueryable CreateQuery(Expression expression)
        {
            throw new NotImplementedException();
        }

        public TResult Execute<TResult>(Expression expression)
        {
            MethodCallExpression methodCall = expression as MethodCallExpression;
            Expression<Func<T, bool>> result = null;
            while (methodCall != null)
            {
                Expression method = methodCall.Arguments[0];
                Expression lambda = methodCall.Arguments[1];
                LambdaExpression right = (lambda as UnaryExpression).Operand as LambdaExpression;
                if (result == null)
                {
                    result = Expression.Lambda<Func<T, bool>>(right.Body, right.Parameters);
                }
                else
                {
                    Expression left = (result as LambdaExpression).Body;
                    Expression temp = Expression.And(right.Body, left);
                    result = Expression.Lambda<Func<T, bool>>(temp, result.Parameters);
                }
                methodCall = method as MethodCallExpression;
            }
            var source = new DBSql().FindAs<T>(result);
            dynamic _temp = source;
            TResult t = (TResult)_temp;
            return t;
        }

        public object Execute(Expression expression)
        {
            throw new NotImplementedException();
        }
    }
}
复制代码



搞定，这时可以改下数据库连接，连到自己的数据库，然后像下面这样，添加一个实体类（要与数据库表对应），就可以使用了

复制代码
   class Program
    {
        public class Staff
        {
            public int ID { get; set; }
            public string Code { get; set; }
            public string Name { get; set; }
            public DateTime? Birthday { get; set; }
            public bool Deletion { get; set; }
        }

        static void Main(string[] args)
        {
            IDataBase db = new DBSql();
            IQueryable<Staff> query = db.Source<Staff>();
            query = query.Where(x => x.Name == "张三");
            foreach (var item in query)
            {

            }
        }
    }
复制代码

是不是很简单？

虽然信息量有点大，但慢慢理清并消化，我相信会对你又很大帮助！

赞(0) 打赏
分享到： 更多 (0)
标签：

相关推荐

热门标签

C# (813)ASP.NET MVC (619)Android (587)ASP.NET (447)数据库 (299)JavaScript (285)JQuery (221)PHP (210)SQLServer (197)程序开发 (156)架构设计 (155)源价值 (155)SQL (128)Java (111)EasyUi (85)教程 (76)网站 (67)Debug (63)互联网 (63)MySQL (60)Flash (56)搜索优化 (54)创意 (53)SEO (51)ASP.NET MVC3 (51)电子商务 (50)建站经验 (49)实例代码 (49)源码下载 (47)原创 (45)

分类

链接表

<figure class="wp-block-image size-full"><a href="https://act.walk-live.com/acts/invite/registration?inviteid=hkXrmnvL" target="_blank"><img src="https://www.mikel.cn/wp-content/uploads/2024/11/wangxinyun.jpg"></a></figure>

觉得文章有用就打赏一下文章作者

支付宝扫一扫打赏

微信扫一扫打赏
